E5000 series Programmable DC Electronic Load
DC electronic load
800~1200V,100~800V
5~30kW
E5000 Series is a compact, high-power DC electronic load featuring wide operating range and high dynamic frequency. In 4U size,it powers up to 6.6kW and outputs voltage up to 1200V. It supports at most 10 E5000 devices in parallel operation.

Catalog

Datasheet

User manual

Communication protocol
    • High power density: 6.6kW in 4U
    • Power output range: 6.6kW

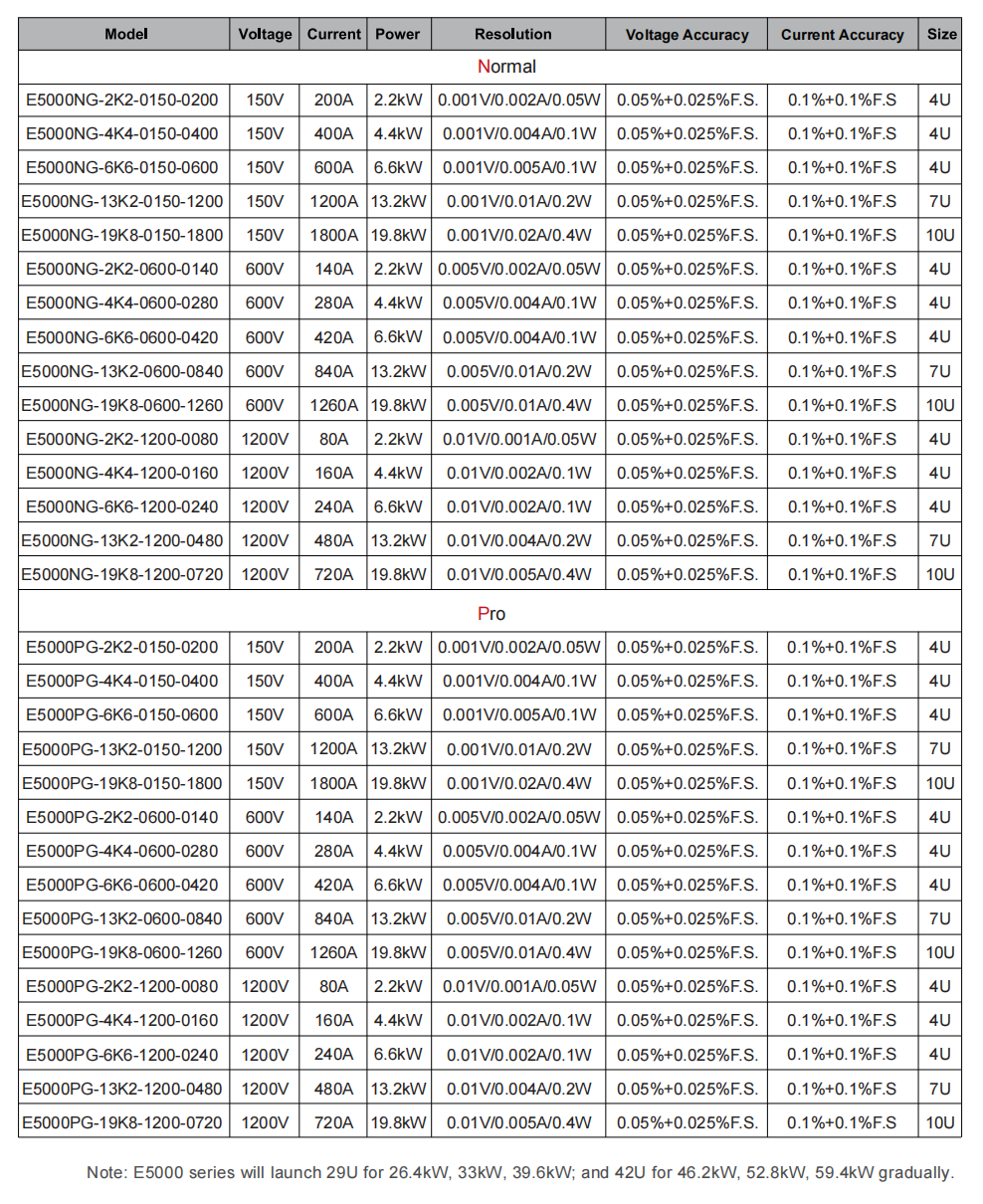

    • Voltage output range: 0 ~ 150V, 0 ~ 600V, 0 ~ 1200V

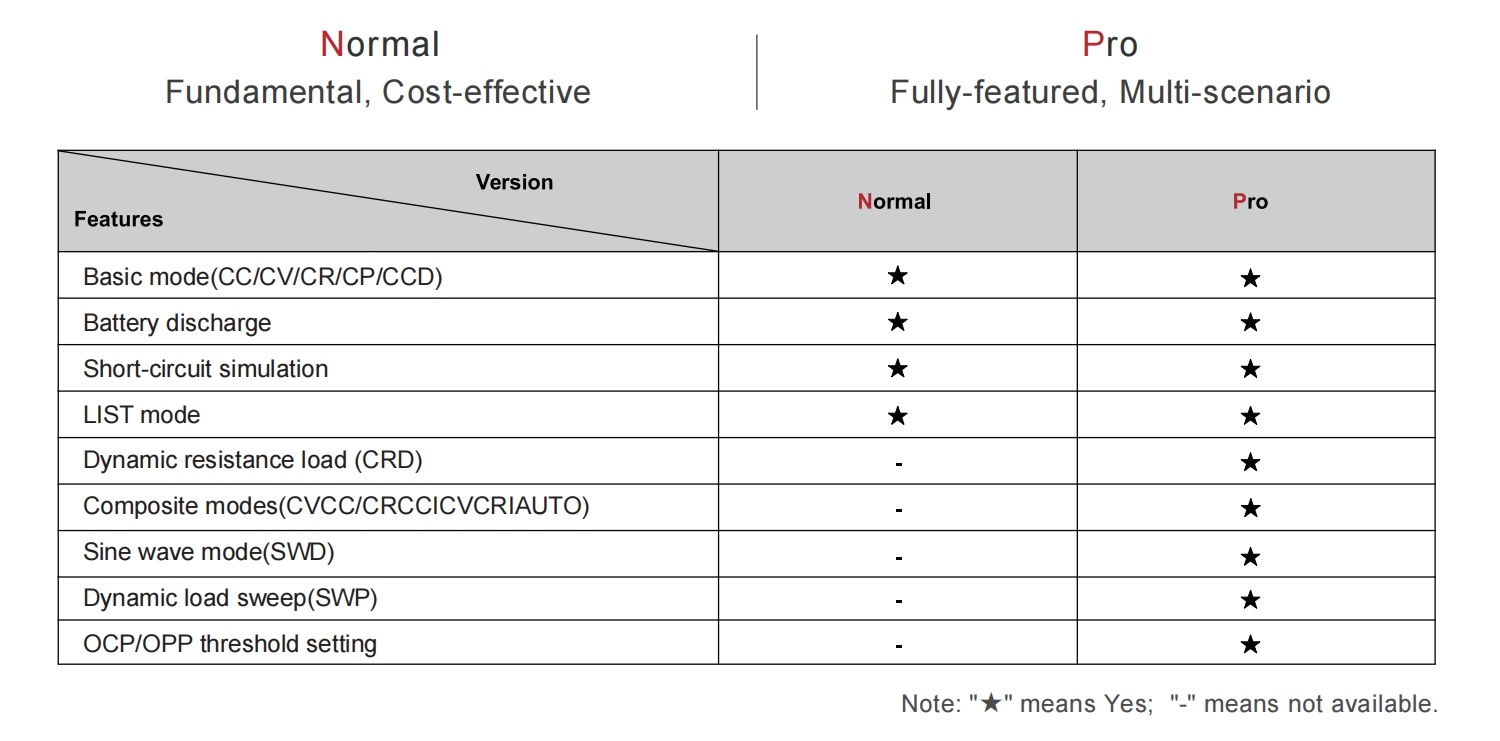

    • A variety of modes: CC, CV, CR, CP, CCD, and CRD
    • Three voltage levels + three current ranges
    • Automatic GO/NG detection
    • Remote voltage compensation
    • Dynamic current/resistance load of 25kHz
    • Analysis of fuel cell impedance
    • RS485/CAN/LAN/USB communication
    • Optional GPIB
    • Protections: OVP, OCP, OTP, OPP, etc.
    • Dynamic frequency of 50kHz
    • Up to 255 groups of programmable sequences
