Fuel Cell System(Engine)Test System

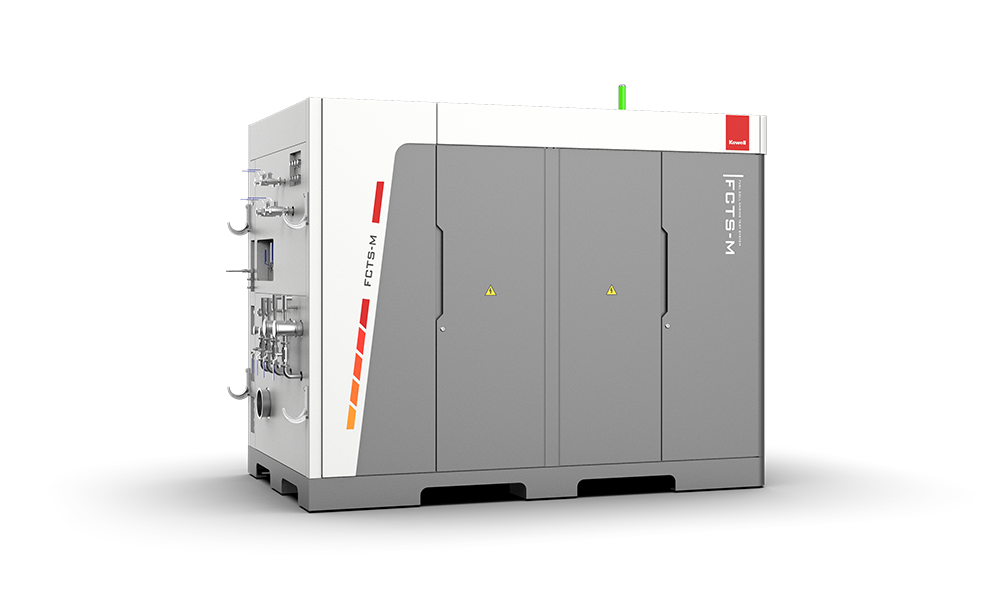

FCTS-M Series
Fuel Cell System(Engine)Test System
PEM
Fuel Cell Test

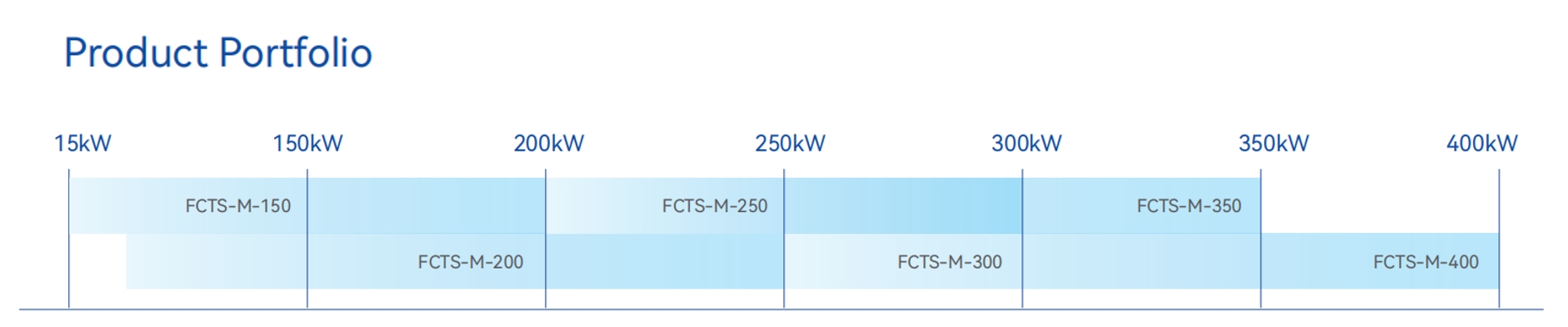

up to 400kW

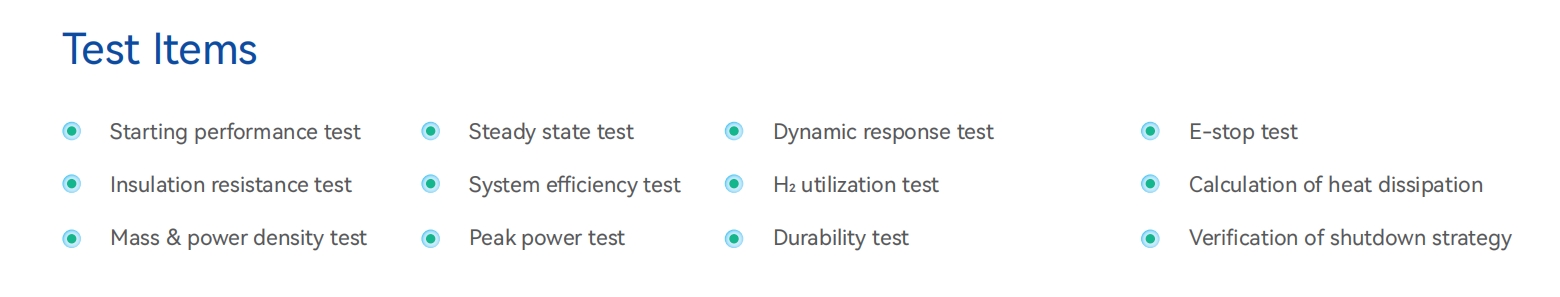

The FCTS-M Series aims to provide an accurate, stable and reliable test system for fuel cell systems. The system mainly consists of the hydrogen supply unit, thermal management unit, low-voltage supply unit, and safety protection unit. It is applicable to testing for the function, performance, service life, reliability and safety of fuel cell systems, as well as the R&D, verification and EOL testing of fuel cell systems

Catalog

Datasheet

User manual

Communication protocol
    • In line with relevant test standards such as GB/T 24554-2022 and JS C62282
    • Highly integrated design of gas intake/exhaust, main and auxiliary thermal management, gas/water circuit purging, low-voltage power supply, control and safety protections, achieving the min. footprint of 2.4m2
    • Source pressure monitoring, insulation monitoring, hydrogen leak protection, temperature detection, manual emergency stop, emergency venting, safety peripheral I/O and independent safety module
    • Safety protections including heartbeat monitoring, three levels of alarm, and automatic handling
    • Support preset test steps, automatic water make-up and venting, N2 purge, etc., as well as 7*24 unattended operation
    • The test software supports automatic test process, DBC file import, data saving, graphical display and automatic report generation
