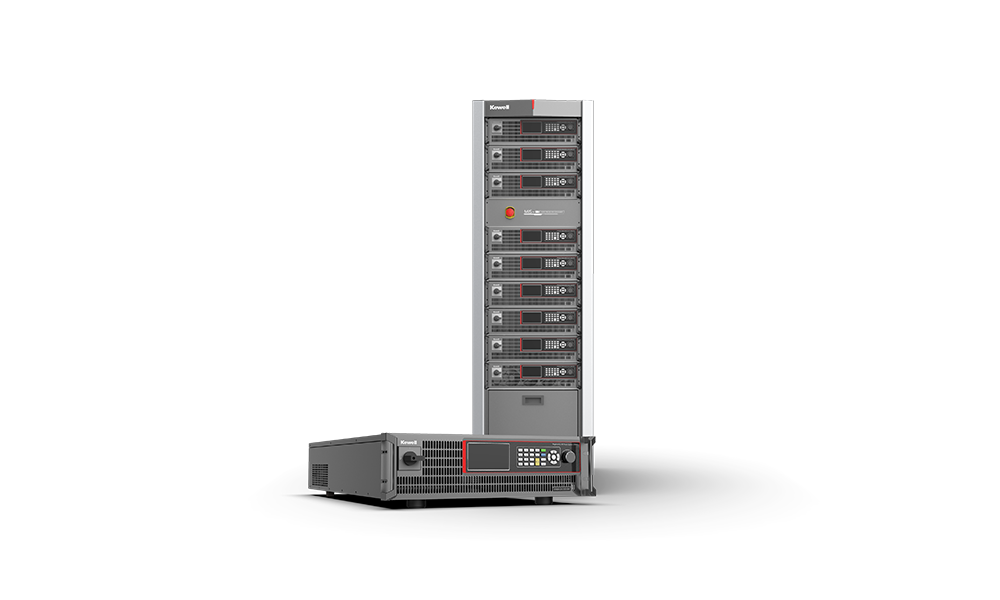

C3000 High Performance Programmable DC Power Supply (High Voltage Version)
DC power supply
1200~2000V,100~800V
5~30kW
The C3000 Series is a high-precision programmable DC power supply boasting wide voltage range, high dynamic performance, and ultra-high power density. Featuring auto-range output and flexible voltage & current combinations, the C3000 Series is widely used in industries such as PV, EV, and aviation.
    • High power density design: 30kW in 3U
    • Power output range: 0 ~ 30kW
    • Current output range: 0 ~ 180A
    • Voltage output range: 0 ~ 2000V
    • Parallel connection: up to 20 units
    • AC voltage input: 342VAC ~ 528VAC
    • PV simulation: Static MPPT, Multi-IV, EN50530, etc.
    • RS485/CAN/LAN/USB communication interface
    • Protections: OVP, OCP, OTP, OPP, etc.
