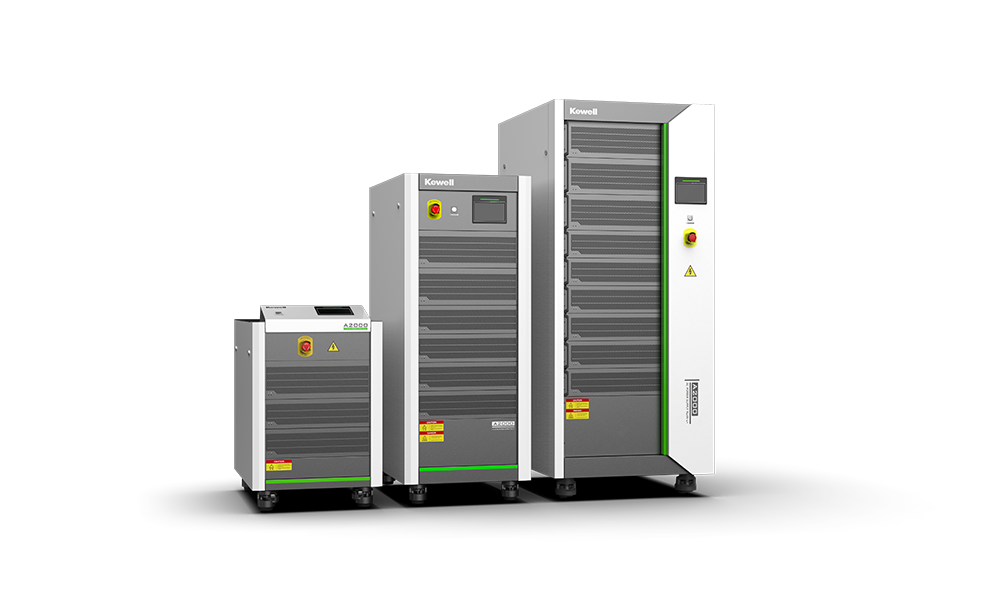

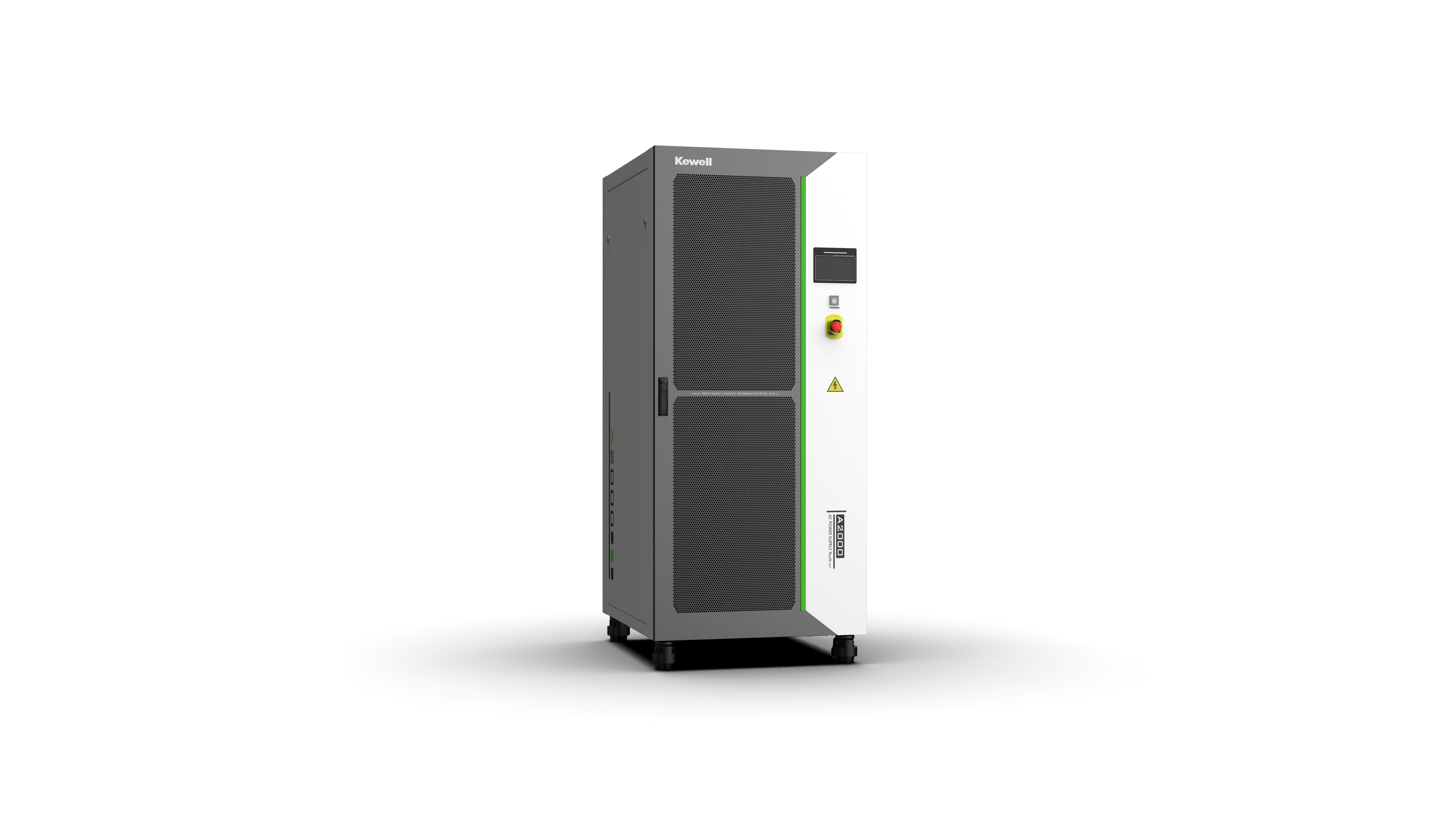

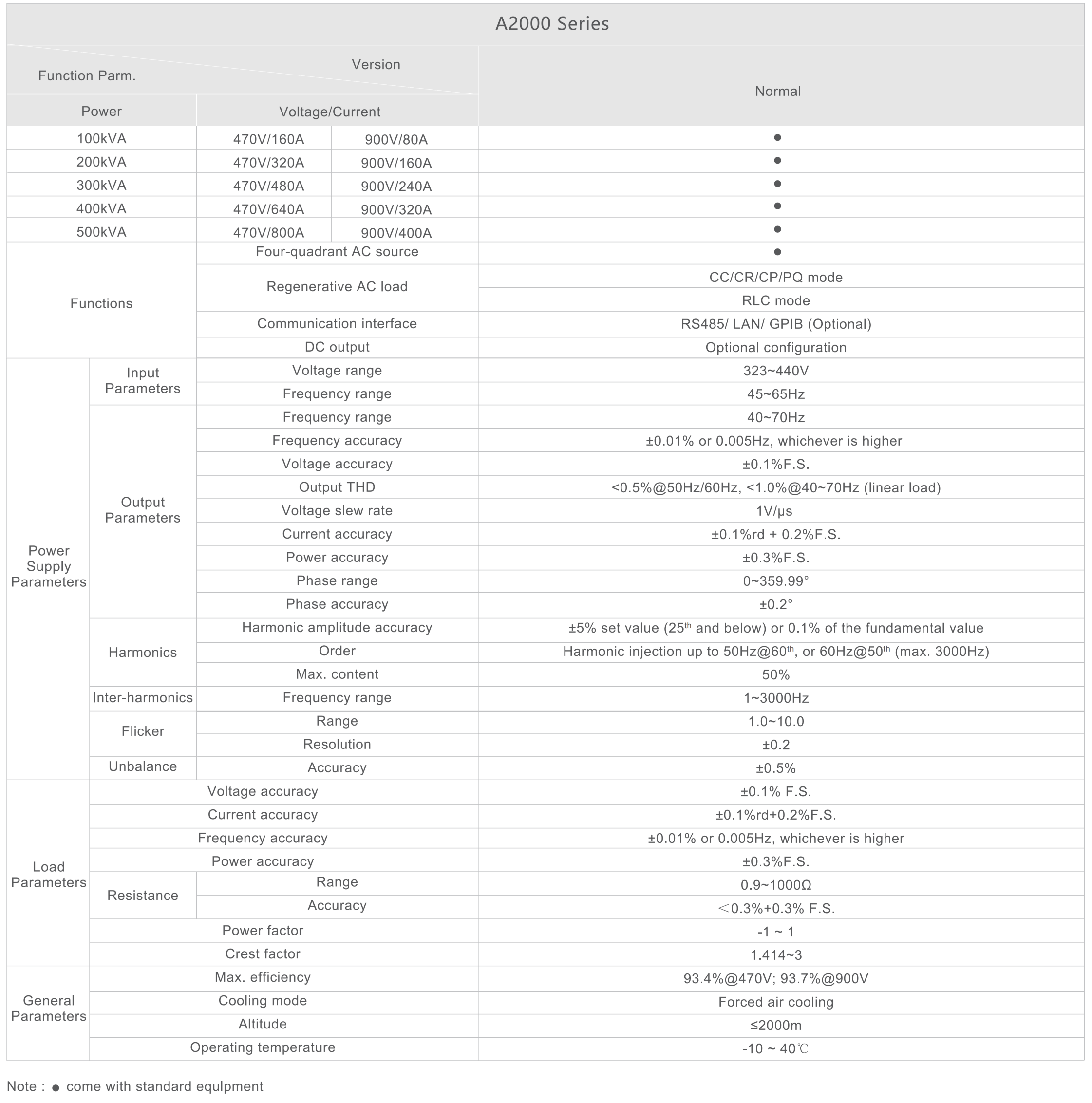

A2000 Series Bi-directional Programmable AC Power Supply
AC electronic load,AC power supply
100~800V
30~600kW

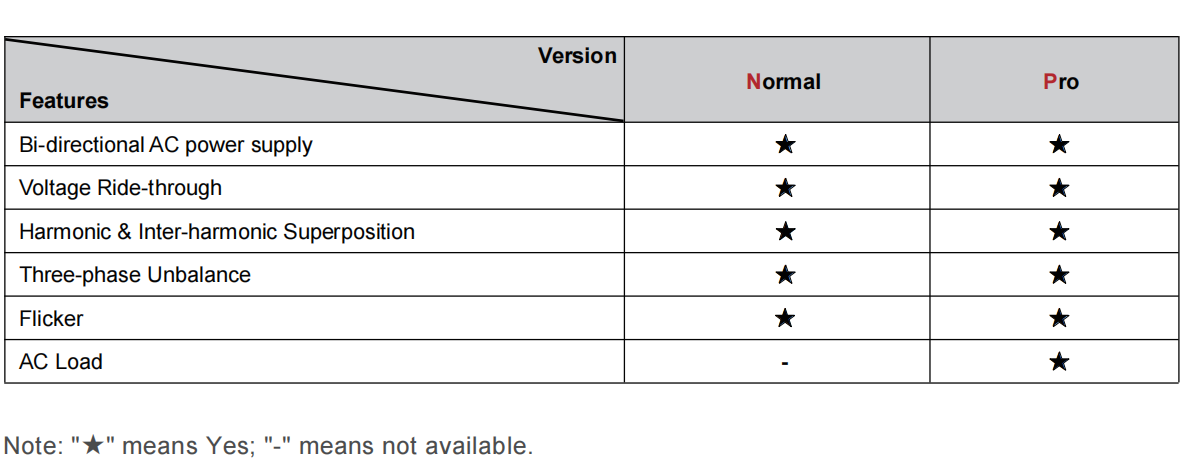

A2000 Series is a bi-directional programmable AC power supply featuring high accuracy, high dynamic response, and high efficiency. The series adopts SiC design of the third-generation wide bandgap semiconductor devices, allowing it to be modularized and standardized, offering industry leading performance and experience. A2000 Series supports waveform editing, harmonic/inter-harmonic injection, RLC load and other functions, with built-in standard curves of different countries to meet the testing requirements of various industries.

    • Third-generation SiC design
    • Electrically operated switch + TFT touch screen
    • Voltage output range: 30~450V(L-N)
    • Current output range: 0~342A
    • Frequency output range: 40-70Hz
    • Efficiency: up to 92.6%
    • Unbalance, flicker simulation
    • Comm. interface: RS485, LAN
    • External emergency stop
    • Multi-step programming

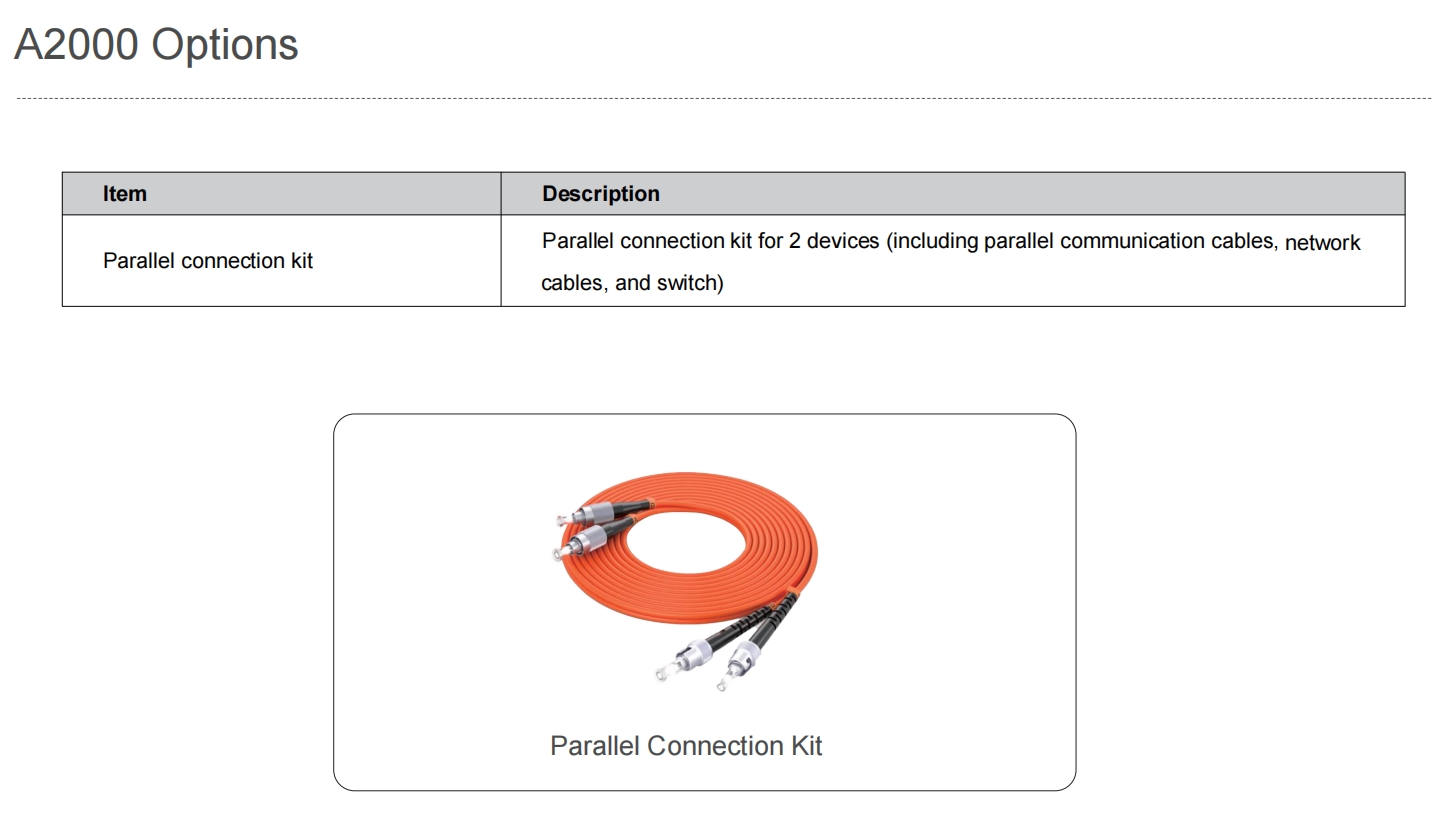

    • Flexible parallel connection
    • LVRT/HVRT/ZVRT
    • Harmonics and inter-harmonics superposition
