Single-cell Test System (Low Pressure)

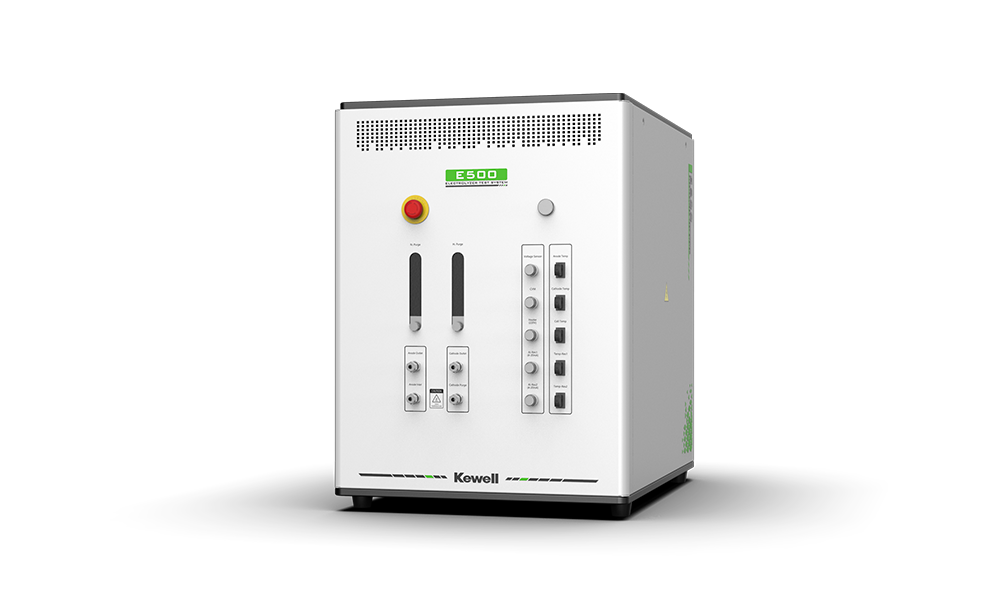

E500 Series
Single-cell Test System (Low Pressure)
PEM,ALK,AEM
Electrolyzer Test
500W
E500 Series aims to provide an accurate and reliable platform for PEM/ALK/AEM electrolyzer single cell and material-level testing. The system mainly consists of the circulation system, N2 purging unit, pressure regulation unit, gas-water separation unit, gas analysis pre-processing unit, PLC acquisition and control unit, HMI, and safety monitoring unit. With our self-developed test software, it supports polarization curve test, electrochemical test, online monitoring of H2 in O2 concentration, stressor test, durability test, as well as test for H2 producing efficiency, H2 quality, and product service life.

Catalog

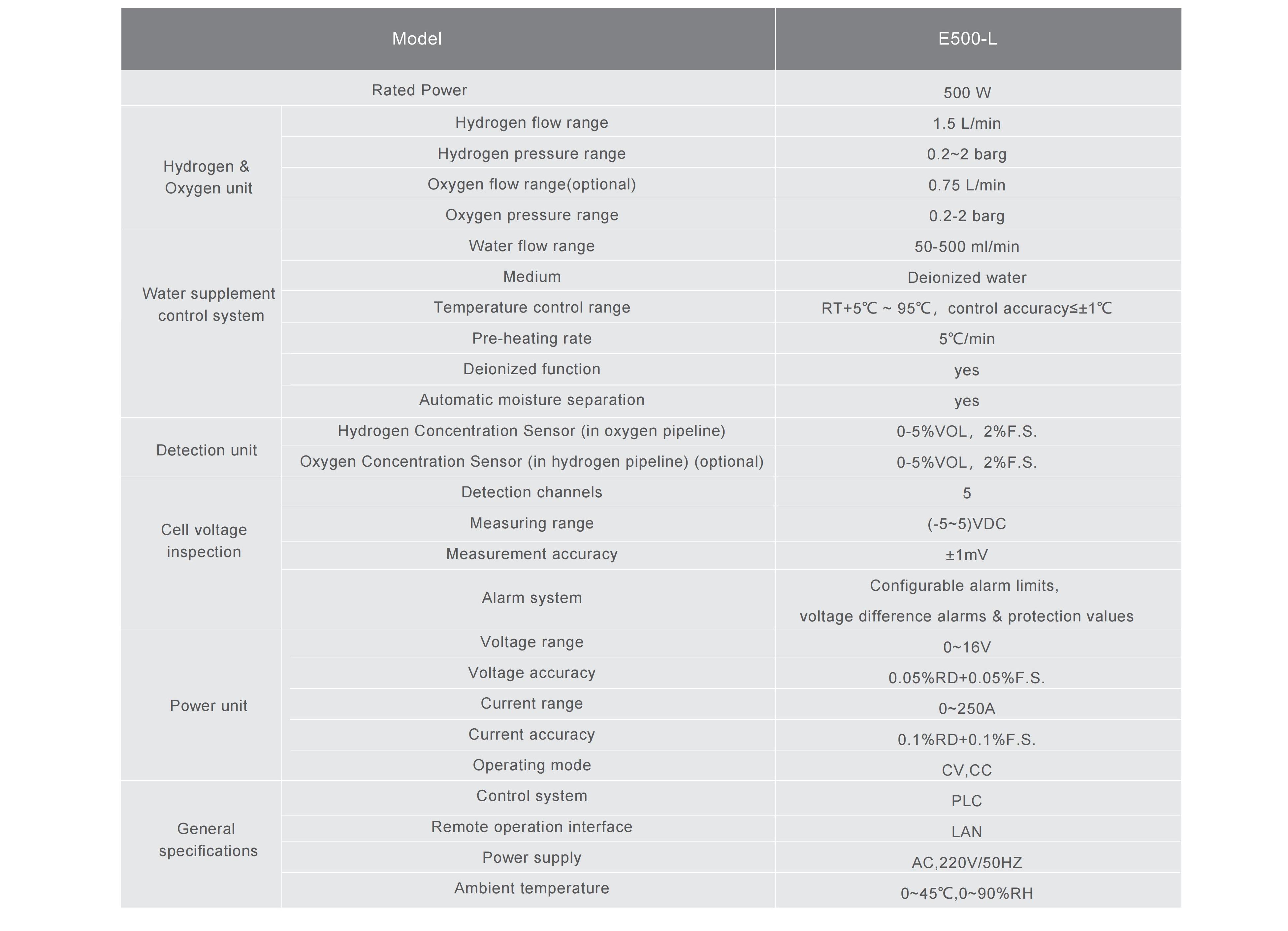

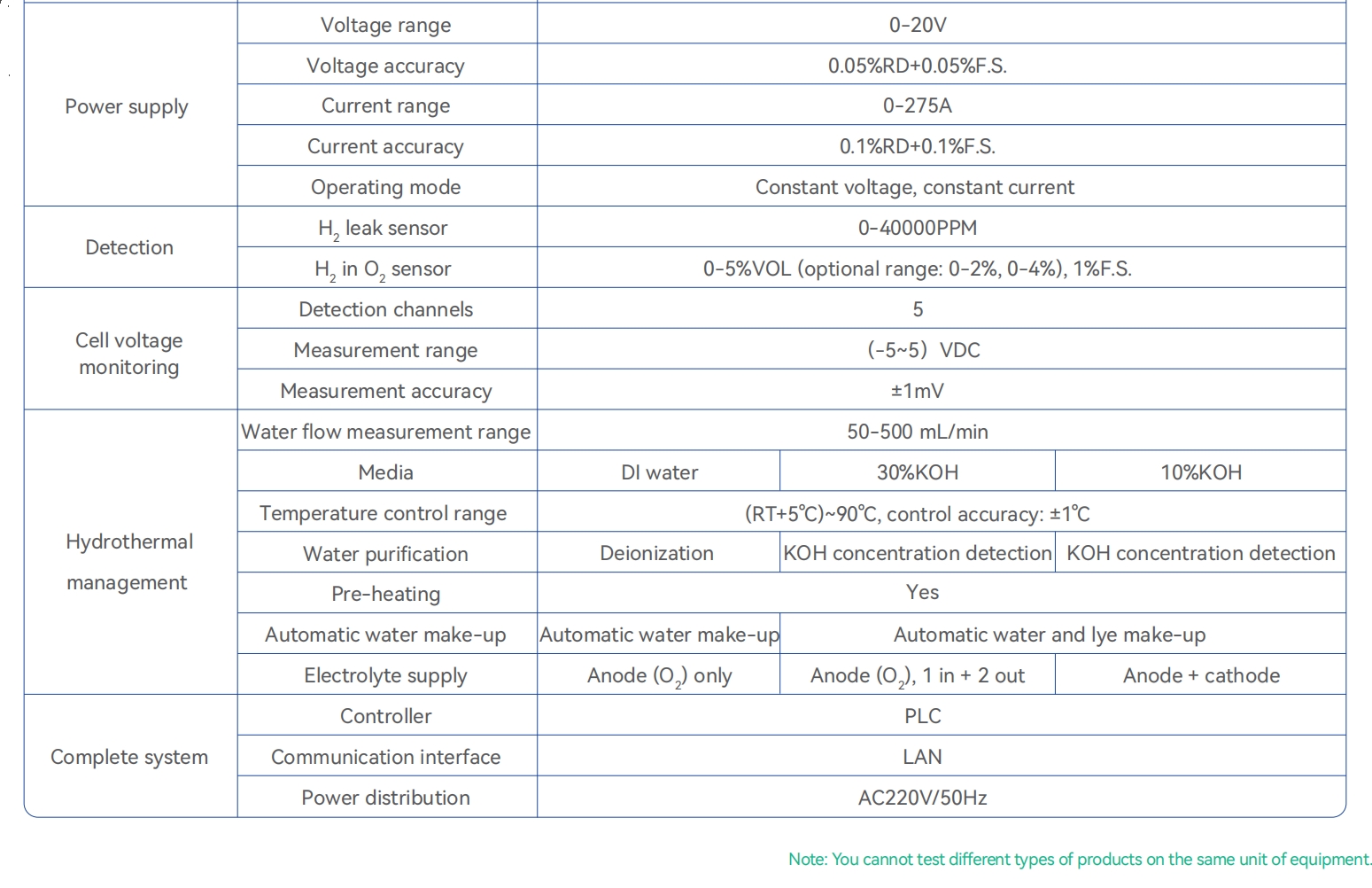

Datasheet

User manual

Communication protocol


    • In line with the testing requirements for electrolyzer proposed by EU JRC.
    • Wide-range and high-accuracy control and monitoring: water flow (1%F.S.), temperature(±1'C), electrical conductivity(≤0.5μS/cm), gas flow (1%F.S.)
    • Gas cooling/drying/filtering, online flow measurement of high accuracy (dew point temperature ≤-40°), and online rapid sampling and analysis.
    • Hardware protections: hydrogen leakage, temperature abnormality, manual emergency stop, emergency venting H2 in O2 concentration, and independent safety unit

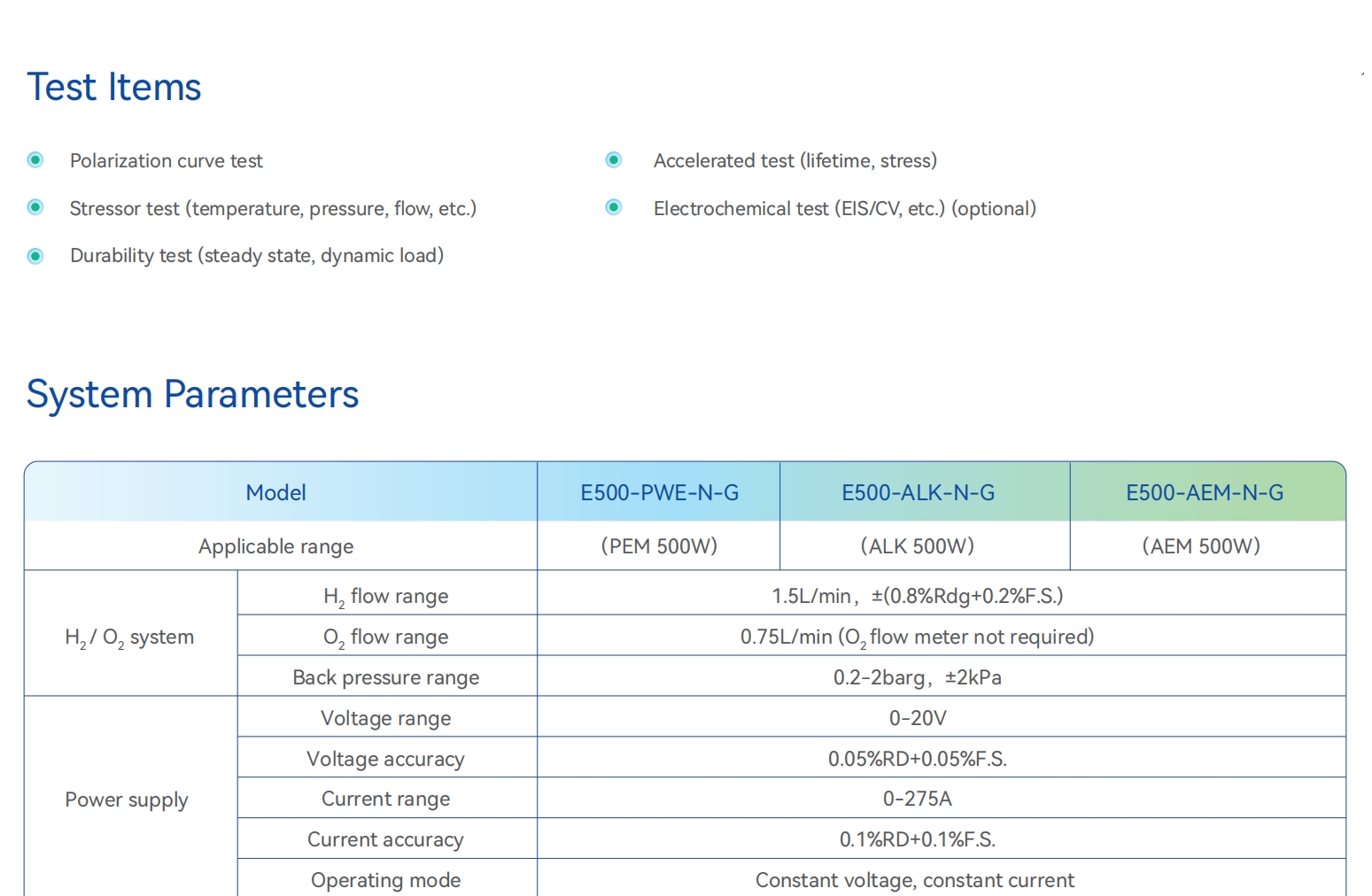

    • Sensitivity, performance (polarization curve, power curve), and durability test
    • Simultaneous data logging with 8 loggers, multi-axis graphics, real-time tracking cursor (in curves only) and customizable script
    • Multi-specification dedicated test fixtures (5cm2,25cm2 ,etc.)
    • EIS/CV and other electrochemical tests
