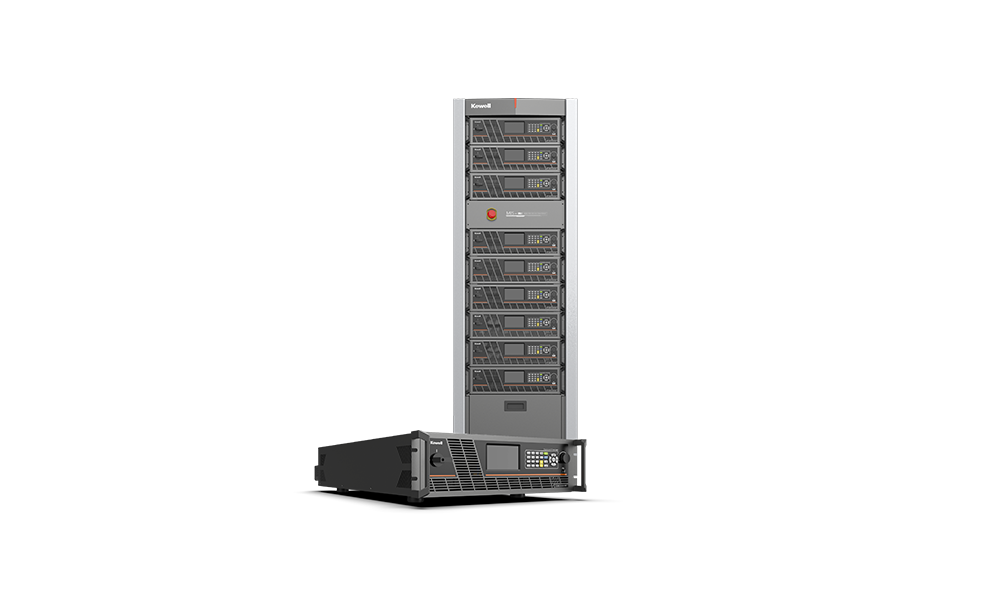

C3000 High Performance Programmable DC Power Supply (Low Voltage Version)
DC power supply
10~100V
5~30kW
The C3000 Series is a high-precision programmable DC power supply boasting wide current range, high dynamic performance, and ultra-high power density. Featuring auto-range output and flexible voltage & current combinations, the C3000 Series is widely used in industries such as PV, EV, and aviation.

Catalog

Datasheet

User manual

Communication protocol

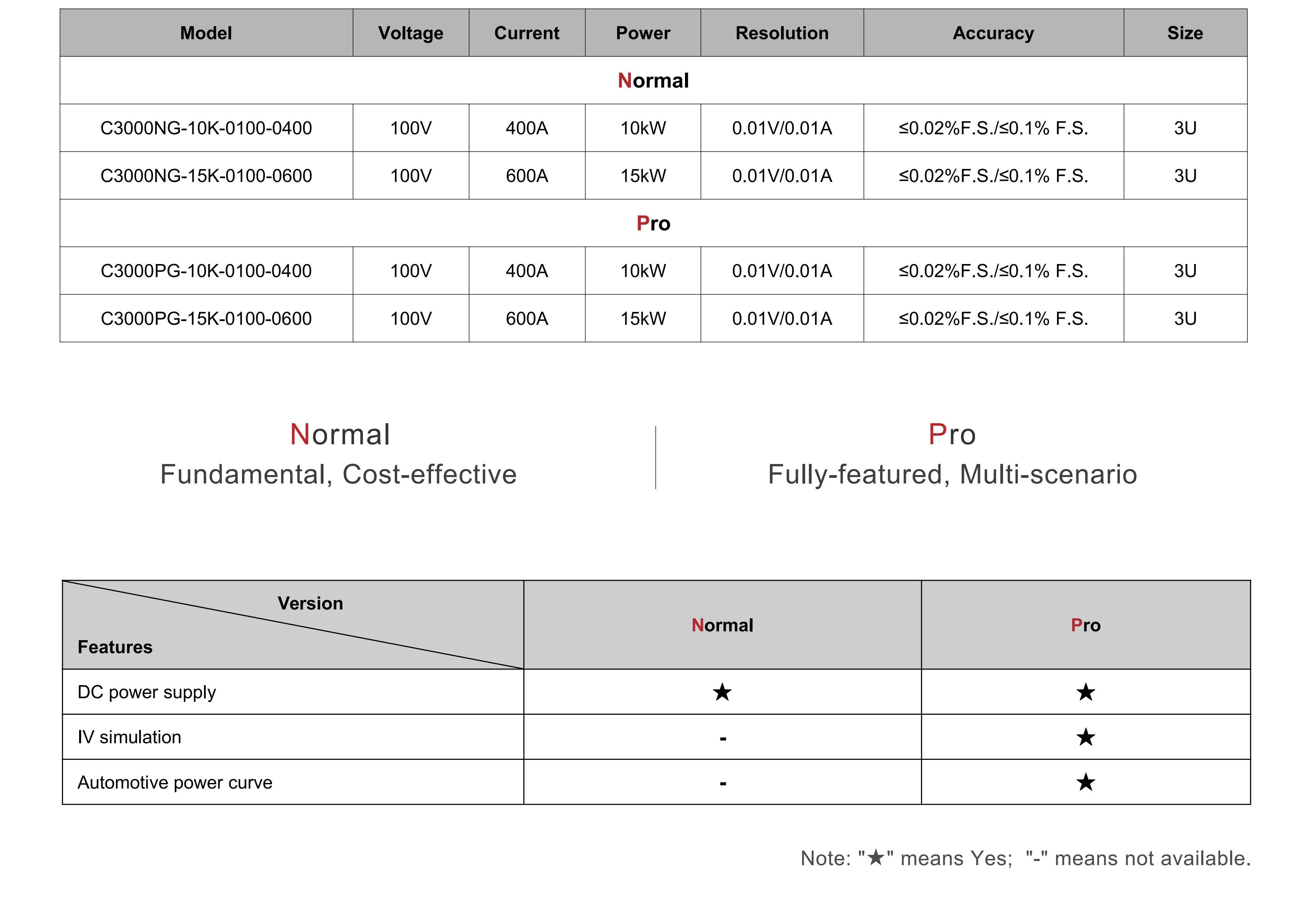

    • High power density: 15kW in 3U
    • Power output range: 0 ~ 15kW
    • Current output range: 0 ~ 600A
    • Voltage output range: 0 ~ 100V
    • Parallel connection: up to 10 units
    • AC voltage input: 342VAC ~ 528VAC
    • PV simulation: Static MPPT, Multi-IV, EN50530, etc.
    • Custom waveforms: triangle, square, and sine
    • Automotive power curve: ISO16750-2, LV123, DIN40839, etc.
    • RS232/LAN/USB communication interface
    • Protections: OVP, OCP, OTP, OPP, etc.
    • Remote voltage compensation
