KEWELL TECHNOLOGY CO.,LTD.

Fuel Cell Test Solutions

To better serve the R&D and design, EOL testing and third-party verification of fuel cells, and to ensure their efficiency, safety and service life, Kewell has launched targeted test solutions for fuel cell performance, reliability and durability.

Technical Advantages

Complete Product Portfolio

A whole product family covering fuel cell stacks, engines (systems), and H2/air/water sub-systems testing

Software and Device Verification Platform

TestWell software platform, script-based, one click start/stop, supporting new product development and component verification

Hydrogen and Electricity Synergy

Directed development capability based on power supply and load

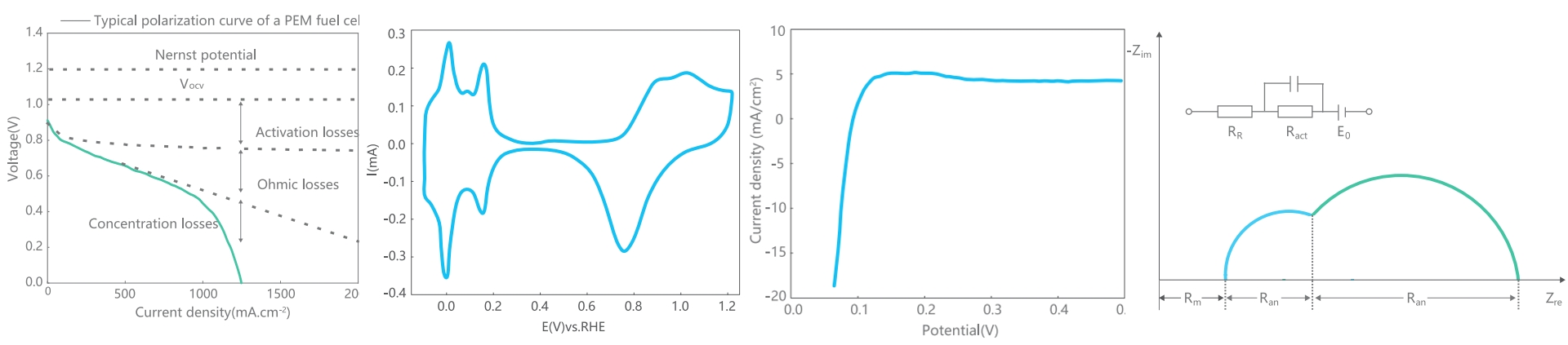

Electrochemical Testing

EIS test, stack-level electrochemical analysis

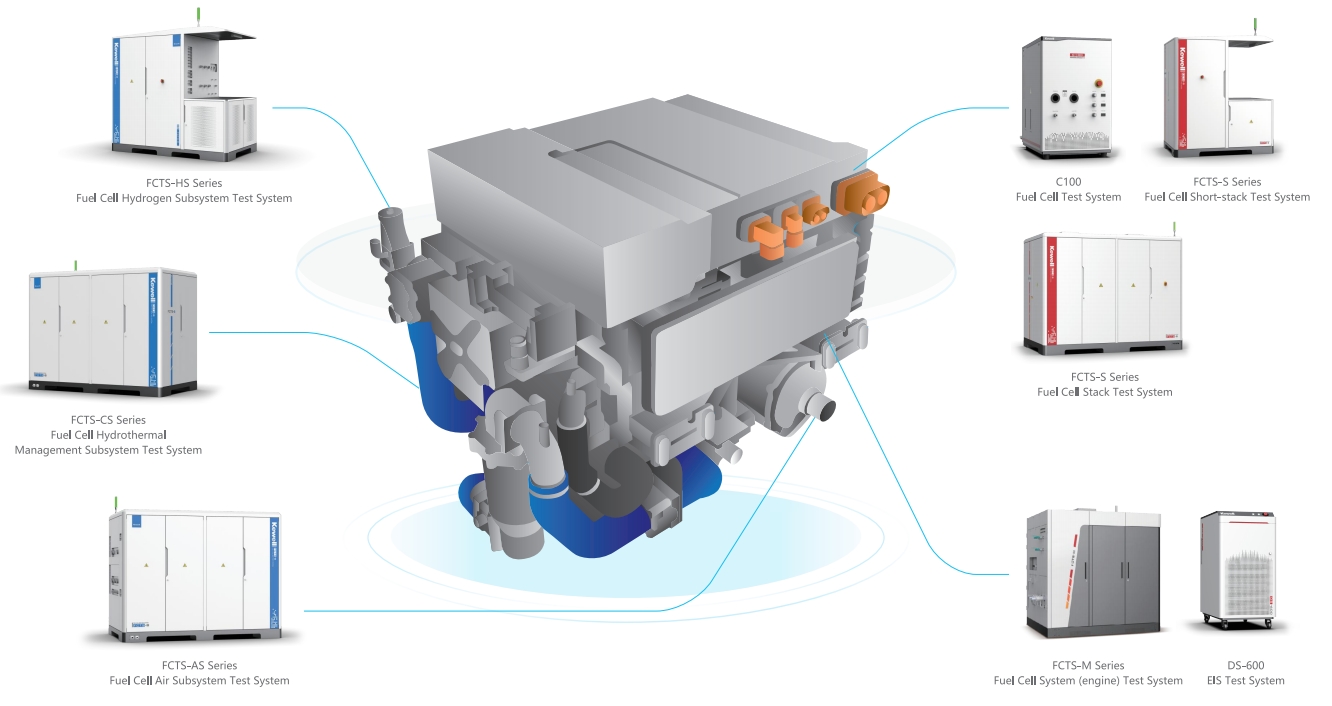

System Topology Diagram

SOLUTIONS

Fuel Cell Test System

In the development and production processes of materials such as proton exchange membranes (PEM ), MEA, gas diffusion layers, catalysts, etc., it is necessary to conduct testing and evaluation of their performance, durability, and consistency.

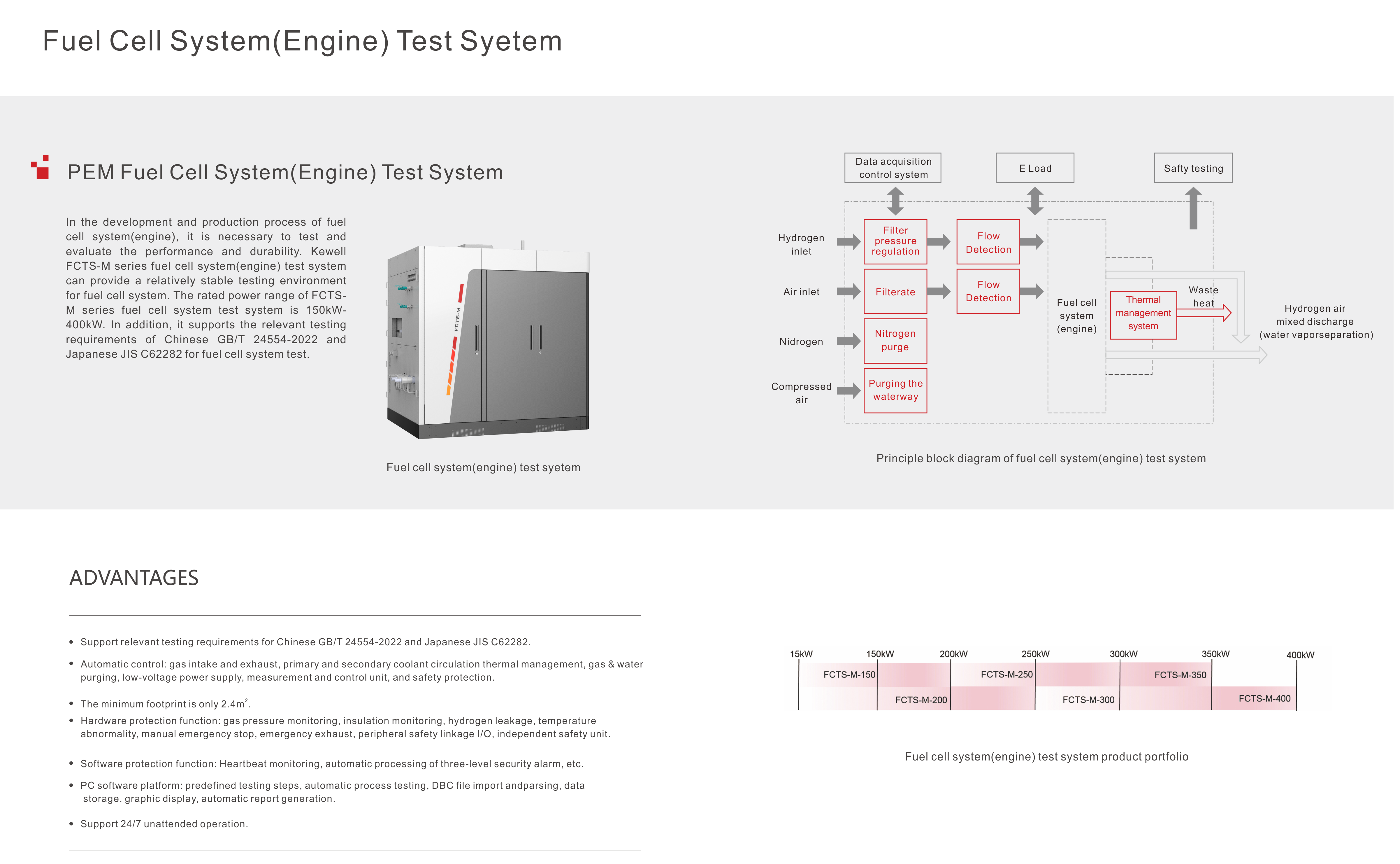

Fuel Cell System(Engine) Test Syetem

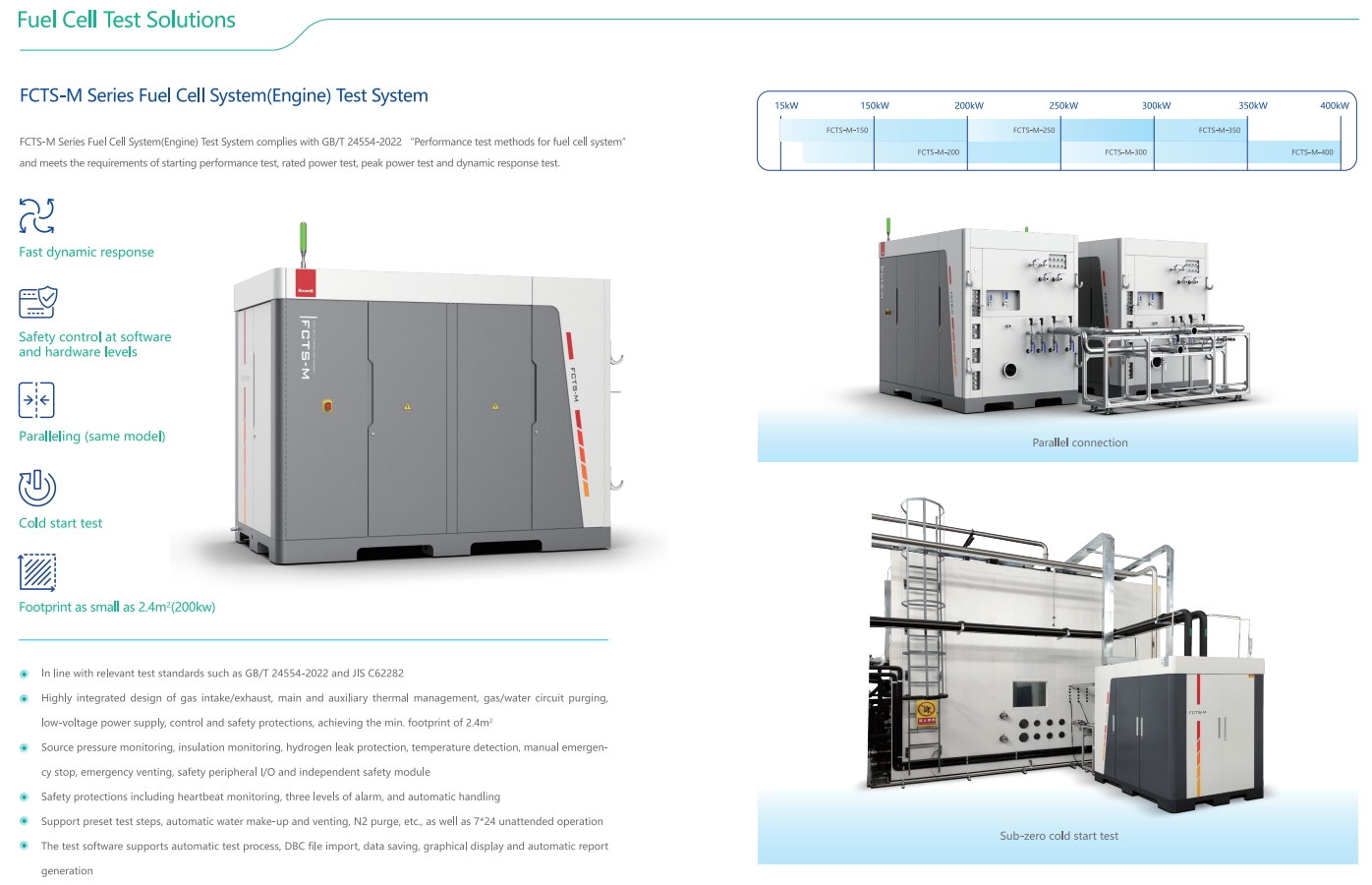

In the development and production process of fuel cell system(engine), it is necessary to test and evaluate the performance and durability. Kewell FCTS-M series fuel cell system(engine) test system can provide a relatively stable testing environment for fuel cell system. The rated power range of FCTS-M series fuel cell system test system is 150kW-400kW. In addition, it supports the relevant testing requirements of Chinese GB/T 24554-2022 and Japanese JIS C62282 for fuel cell system test.

Product recommendations
