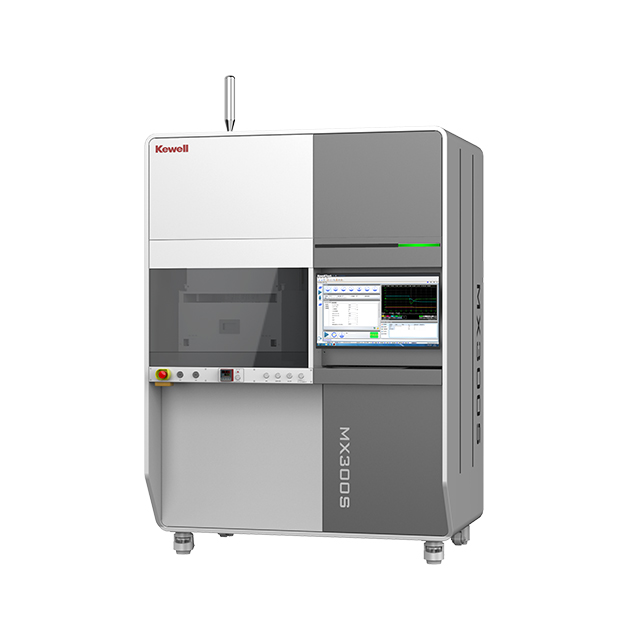

MX300S Series IGBT Static Test System

. Gate leakage current
. Collector cutoff current
. Collector-emitter voltage

Availability:


Inquire

Model: MX300S

Summary

MX300S IGBT Static Test System is an automated test equipment for evaluating the static characteristics of IGBT. Composed of high voltage power supply, fixture unit, measuring unit, control unit, pulse current source and supporting test instruments. With software independently developed by Kewell, the system provides a stable and precise platform to test the static characteristics of IGBT.

Functions

Gate leakage current
Collector cutoff current
Collector-emitter voltage
Threshold voltage
Saturation voltage drop
Pre-pinch off voltage
Diode voltage drop

Advantages

Multi-scale measurement circuit. Significantly improved signal detection accuracy.
Test Package Compatibility: Maximum of 8 channels for automated test
High precision digital measurement technology.
Reasonable working temperatures of constant temperature plate: Ambient temp.~200℃
Independently developed relay module. Longer service life and speed up the test.
Available with scanners and PN codes registration. Automated generation of test reports.
Real-time monitoring. Work steps and protection variables can be set online. Simple and convenient.
Well-established data recording system and analytics for future processing.

MX300S IGBT Static Test System

Model		MX300S-2000-3000
Output	Voltage range	50~2000V
	Voltage precision	0.1%FS
	Voltage resolution	0.1V
	Current range	50~3000A
	Current precision	0.1%FS
	Current resolution	1A
Parameters	Working mode	Laboratory mode/Production mode
	Positive & negative gate voltages	5~±100V
	Gate voltage precision	0.2%
	Gate voltage resolution	0.01V
	Substrate temp. range	25~200℃
	Substrate temp. precision	0.5%FS
	Substrate temp. resolution	0.1℃
Reserved Interface	Fixture (adapter)	Customize according to IGBT models.
Communication	Frequency	50Hz±5Hz
	Human-computer interface	LCD
	External communication	LAN
Specifications	Protection level	IP21 (indoor)
	Dimensions	1300mm (W) ×1850mm (H) × 900mm (D)
	Ambient temperature	25~40℃

Model		MX300S-2000-3000
Output	Voltage range	50~2000V
	Voltage precision	0.1%FS
	Voltage resolution	0.1V
	Current range	50~3000A
	Current precision	0.1%FS
	Current resolution	1A
Parameters	Working mode	Laboratory mode/Production mode
	Positive & negative gate voltages	5~±100V
	Gate voltage precision	0.2%
	Gate voltage resolution	0.01V
	Substrate temp. range	25~200℃
	Substrate temp. precision	0.5%FS
	Substrate temp. resolution	0.1℃
Reserved Interface	Fixture (adapter)	Customize according to IGBT models.
Communication	Frequency	50Hz±5Hz
	Human-computer interface	LCD
	External communication	LAN
Specifications	Protection level	IP21 (indoor)
	Dimensions	1300mm (W) ×1850mm (H) × 900mm (D)
	Ambient temperature	25~40℃
